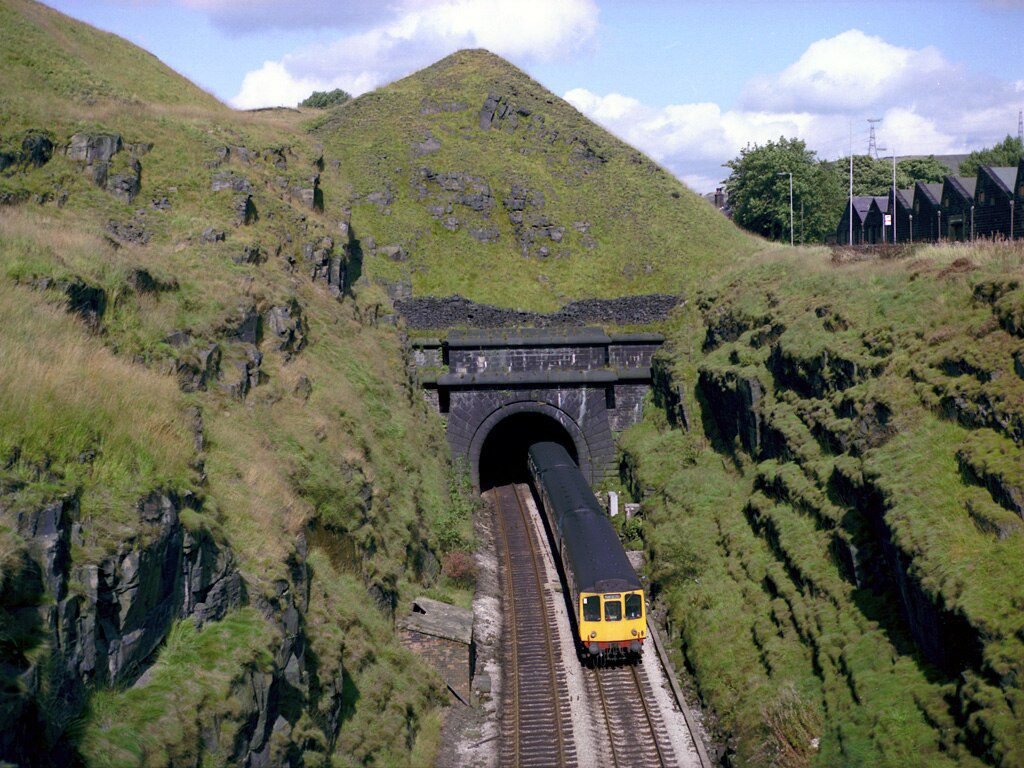

Ingy The Wingy, CC BY-SA 2.0 , via Wikimedia Commons. Summit_Tunnel_Littleborough_Class_110_1982

A Triumph of Engineering Ingenuity: Summit Tunnel

Exploring the Historic Summit Tunnel: A Testament to Ingenious Railway Engineering

Welcome to our extensive guide on the Summit Tunnel. It is one of the planet’s most ancient railway tunnels. This article delves into its rich history, engineering marvels, and notable incidents. Join us to explore this iconic structure and uncover its fascinating stories. It is certainly a triumph of engineering ingenuity.

The Summit Tunnel is a railway marvel with a remarkable history. This historic tunnel has seen countless trains pass through its enduring arches. Constructed at a time when rail travel was in its infancy, it stands as a testament to human ingenuity.

Engineers faced challenging terrain during its construction. The tunnel extends through the Pennines, presenting formidable obstacles. It’s a feat of engineering that overcame rugged landscapes, rocky terrain, and unforeseen difficulties.

Its historical significance cannot be overstated. Over the years, it has been a witness to transformative events in the railway industry. In this guide, we will traverse its eventful past, from the early planning stages to its enduring legacy.

One notable aspect is its sheer length. Stretching over a significant distance, posed both engineering and logistical challenges. We will explore how engineers overcame these hurdles to complete this monumental railway tunnel.

Historic events:

Throughout its existence, the Summit Tunnel has been associated with remarkable incidents. From heroic rescues to curious events, it’s a place where history unfolded. Join us as we unravel these captivating stories.

In terms of its legacy, the Summit Tunnel remains an icon of railway history. It has been a crucial artery for transportation, connecting regions and fostering economic growth. Today, it stands as a testament to innovation and perseverance.

In conclusion, our guide provides a comprehensive look at the Summit Tunnel. From its construction challenges to its fascinating history, it’s a journey through time and engineering brilliance. Join us on this exploration of a true marvel in the world of railways.

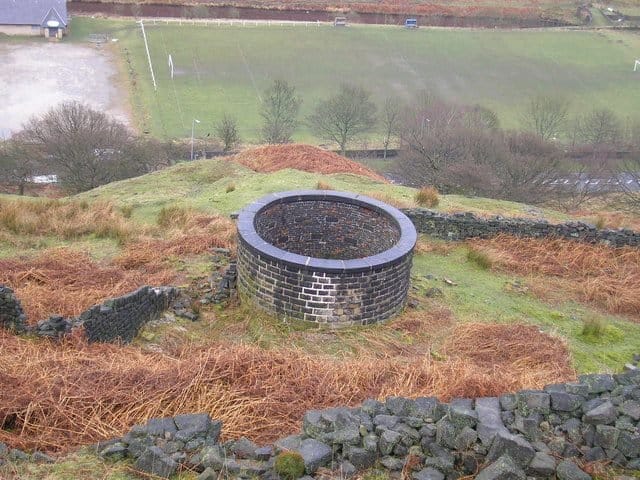

Summit Tunnel Ventilation Shaft. By John Illingworth, CC BY-SA 2.0, https://commons.wikimedia.org/w/index.php?curid=8975479

Development of the Summit Tunnel

Nestled in England’s landscape, the Summit Tunnel is a historic masterpiece constructed between 1838 and 1841 by the esteemed Manchester and Leeds Railway Company. This railway marvel served as a crucial link, uniting Leeds and Manchester with a direct railway connection, signifying a monumental leap in railway engineering and innovation.

Designed under the visionary guidance of engineer Thomas Longridge Gooch, along with the able assistance of Barnard Dickinson, the Summit Tunnel was a project fraught with engineering complexities. Spanning an impressive 1.6 miles (2.6 km), this engineering feat carved its way through the rugged Pennines, a formidable natural barrier that had long hindered seamless transportation. Its unique horseshoe-shaped design, boasting dimensions of approximately 24 feet (about 7 m) in width and 22 feet (around 7 m) in height, was meticulously designed to house two standard-gauge tracks.

Deadly cost of construction:

Yet, the tunnel’s creation was not without its trials and tribulations. The excavation process proved to be far more challenging than originally envisioned, causing significant delays in the construction schedule. Ultimately, on the 1st of March in 1841, the Summit Tunnel proudly opened its arches, with Sir John Frederick Sigismund Smith officiating the inauguration. However, this historic achievement was not without a sombre toll; the toil of its construction had claimed the lives of 41 dedicated workers.

This brief account only scratches the surface of the Summit Tunnel’s rich history. Join us on an exploration of this remarkable structure and the fascinating stories that have woven the tapestry of its legacy in railway history.

A Triumph of Engineering Ingenuity

The Summit Tunnel stands as a testament to the pioneering spirit and engineering prowess of its time. Let us delve deeper into the technical specifications that make this tunnel a remarkable feat of human innovation.

Construction Details and Materials

The creation of the Summit Tunnel was a testament to precision and careful engineering craftsmanship. The process involved painstakingly working with various materials. The laborers manually drilled through layers of shale, coal, and sandstone, their work illuminated solely by the flickering glow of candlelight.

In the construction of the tunnel, an astounding 23 million locally handcrafted bricks were meticulously placed to form its sturdy walls. It’s a remarkable feat that on certain days, as many as 60,000 bricks were laid. This not only exemplified the sheer quantity of bricks but also underscored the exceptional dedication and swiftness of the workforce.

To ensure that the tunnel would remain impervious to water, the construction team adopted a material known as Roman cement. This special mortar, chosen for its impermeability, was carefully applied. An estimated 8,100 tonnes (dry weight) of this cement had to be transported from Hull to the tunnel site, emphasizing the extensive logistical effort required.

The precise alignment and accuracy of the tunnel were attained through the strategic drilling of 14 vertical shafts. These shafts served a dual purpose; initially, they provided crucial survey points to ensure the tunnel’s alignment, and once the project was complete, they served as vital ventilation points. In the end, 12 of these shafts were retained for this purpose, contributing to the tunnel’s long-term functionality.

The Summit Tunnel’s construction was not just a remarkable engineering feat; it was a testament to the dedication, skill, and ingenuity of the workers who overcame formidable challenges to create this iconic railway structure. Join us as we delve further into the history and stories that surround this engineering marvel.

The Challenging Path to Completion

The path of constructing the Summit Tunnel was fraught with challenges. Solid bedrock and unyielding blue shale, initially unforeseen, presented formidable obstacles during excavation. As a consequence, progress was notably slower than the project’s initial projections had anticipated.

By March 1839, the sluggish pace of work necessitated a change in leadership. The original contractors were relieved of their duties, and George Stephenson took the helm of the project. Under Stephenson’s experienced guidance, work resumed with newfound vigor and accelerated momentum.

However, in March 1840, a bricklayers’ strike temporarily halted this remarkable progress. Despite this setback, the collective determination of the workforce persevered. Finally, on the 9th of December 1840, the monumental undertaking reached its zenith with the placement of the last brick, symbolizing the completion of this remarkable engineering achievement.

The Summit Tunnel’s construction history is a testament to human resilience, adaptability, and the unwavering commitment to surmount even the most daunting challenges. Dive deeper into the captivating narrative of this tunnel and the stories that have defined its legacy in railway history.

The Summit Tunnel Fire: A Test of Resilience

On the fateful day of December 20th, 1984, a significant incident shook the Summit Tunnel when a fire broke out, presenting a formidable challenge to both the structure and its users. Despite the blaze’s intensity, a remarkable fact emerged: no fatalities or injuries were reported.

The fire, believed to have been ignited by an electrical fault on a locomotive, swiftly engulfed the tunnel. Thick smoke and fierce flames created a perilous environment, demanding immediate evacuation and an urgent emergency response. Firefighters rushed to the scene, waging an arduous battle against the inferno that raged for hours.

Fortunately, the Summit Tunnel had an ingenious ventilation system in place, originally established with the drilling of vertical shafts during its construction. These shafts proved pivotal during the incident, serving as a means for the heated gases and smoke to escape. Their efficiency played a critical role in preventing a catastrophic build-up within the tunnel, thereby minimizing damage to the tunnel lining and ensuring the safety of those involved in the firefighting efforts.

After a strenuous five-month period of extensive repairs, the Summit Tunnel emerged renewed, reopening for service on May 29, 1985. This incident underscored the resilience of the tunnel’s design and highlighted the effectiveness of the ventilation system in averting potential disasters. Join us in further exploring the Summit Tunnel’s history, marked by such remarkable episodes.

Reopend tunnel By S Parish, CC BY-SA 2.0, https://commons.wikimedia.org/w/index.php?curid=8975452

Legacy and Significance

The Summit Tunnel holds a place of profound historical and engineering importance. As one of the world’s earliest and lengthiest railway tunnels, it played a pivotal role in uniting the cities of Leeds and Manchester, ushering in a transportation and trade revolution in the region.

The construction of this tunnel was a remarkable feat of its era, a testament to the brilliance and unwavering determination of the engineers and labourers involved. Despite the formidable challenges encountered during excavation, which included the loss of lives and unforeseen delays, the Summit Tunnel endures as an enduring testament to human resilience and engineering prowess.

In contemporary times, the Summit Tunnel remains a vital component of the rail network, facilitating the seamless movement of both passengers and goods between Leeds and Manchester. It stands as a symbol of England’s rich railway heritage and serves as a reminder of the strides made in transportation infrastructure over the years.

For those eager to witness the impressive engineering marvel firsthand, it’s essential to note that access to the active railway tunnel is restricted for safety reasons. However, various heritage sites, museums, and exhibitions in the vicinity offer opportunities to explore the Summit Tunnel’s history and appreciate its profound impact on the development of railways. Join us in discovering the captivating tales that envelop this iconic structure.

Conclusion

The Summit Tunnel, a true beacon of pioneering spirit and engineering genius, continues to inspire all who venture into its historic embrace. Its creation, marked by remarkable achievements and the resilience of its builders, cements its status as an iconic masterpiece of railway engineering.

As you consider your journey through the Summit Tunnel, remember that it has overcome formidable challenges, including a significant fire incident, to emerge stronger than ever. These trials and triumphs have woven a tapestry of history that is both resilient and enduring.

Today, the Summit Tunnel remains a vibrant and essential link, connecting the vibrant cities of Leeds and Manchester. It serves as a testament to human ingenuity and determination, as it seamlessly ushers people and goods along its path.

The Summit Tunnel stands as a historical landmark, beckoning visitors to immerse themselves in a world where adversity is transformed into achievement. It’s a place that reminds us of the power of human endeavour and the enduring spirit of innovation.

So, when you contemplate your next journey, consider the Summit Tunnel. It’s not just a piece of history; it’s an invitation to witness the remarkable achievements of engineers and workers who transformed challenges into an enduring masterpiece of transportation infrastructure. Come, be inspired, and experience the living legacy of the Summit Tunnel for yourself.
